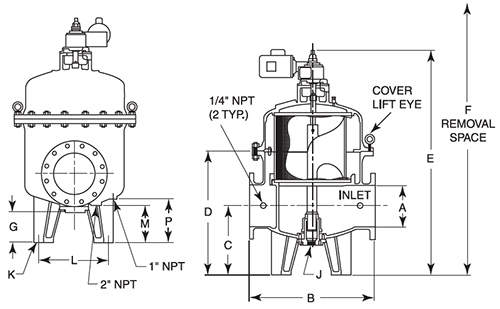

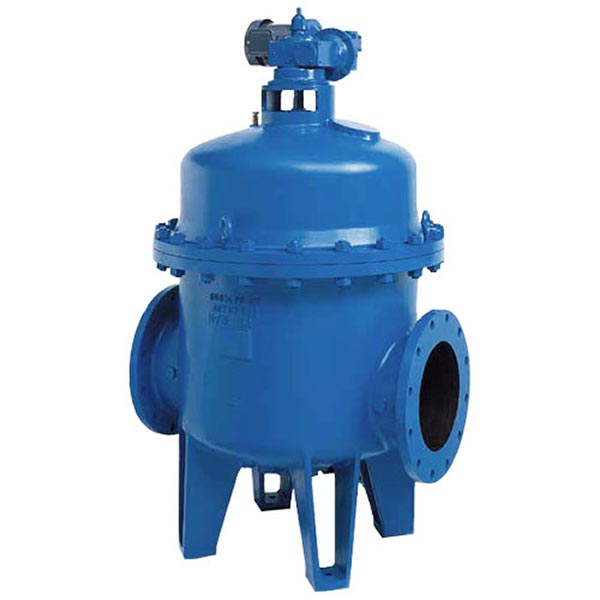

Click for Larger ViewModel 2596 10-16 Inch Automatic Self-Cleaning Basket Strainer
Cast Ductile Iron, Flanged, 10" to 16"The Eaton Model 2596 10" to 16" Automatic Self-cleaning Strainer is designed for the continuous removal of particle solids from liquids in pipeline systems, preventing damage to expensive pipeline system components. It features the unique idL™ shaft seal that positively prevents leakage from the backwash shaft at the top of the strainer.
-
Features:
- Flow rates up to 7,000 gpm (1590 m3/hr)
- A broad selection of screen options
- Automatic backwashing for operator-free service and minimal backwash effluent
- Cast ductile iron construction
Available Sizes: 10", 12", 14", 16"
To simplify maintenance the Model 2596 features a unitized modular assembly. The motor, gear reducer, and the internal operating mechanism are housed within the strainer cover and lift off as a unit. This makes all components easily accessible and reduces associated maintenance costs.
With an automatic control system monitoring the strainer operation, cleaning is accomplished by an integral backwash system. A small portion of the screen element is isolated and cleaned by reverse flow. The remaining screen area continues to strain – providing uninterrupted flow. With this efficient design, only a small amount of the liquid being strained is used to carry away the debris from the strainer. Continuous flow is assured and protection is provided for nozzles, pumps, valves, heat exchangers, and process equipment.
Application Limits
• Ductile Iron Class 125 Flange (-20° to 150°F) 150 psi
Application Limits 16" Size
• Ductile Iron Class 125 Flange (-20° to 150°F) 150 psi Based on ASME Section VIII, Div. 1. Lower pressure ratings at higher temperatures
With an automatic control system monitoring the strainer operation, cleaning is accomplished by an integral backwash system. A small portion of the screen element is isolated and cleaned by reverse flow. The remaining screen area continues to strain – providing uninterrupted flow. With this efficient design, only a small amount of the liquid being strained is used to carry away the debris from the strainer. Continuous flow is assured and protection is provided for nozzles, pumps, valves, heat exchangers, and process equipment.
Application Limits
• Ductile Iron Class 125 Flange (-20° to 150°F) 150 psi
Application Limits 16" Size
• Ductile Iron Class 125 Flange (-20° to 150°F) 150 psi Based on ASME Section VIII, Div. 1. Lower pressure ratings at higher temperatures

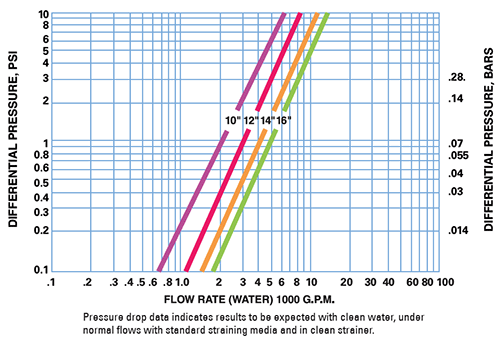

Flow Rates - Click for Larger View
Model 2596 Automatic Control Systems
Eaton Automatic Control Systems (ACS) are specifically designed to monitor and operate the backwash cleaning system of Eaton Models 2596 Automatic Strainers.
Click Here to View the Available Automatic Control Systems
Eaton Automatic Control Systems (ACS) are specifically designed to monitor and operate the backwash cleaning system of Eaton Models 2596 Automatic Strainers.
Click Here to View the Available Automatic Control Systems

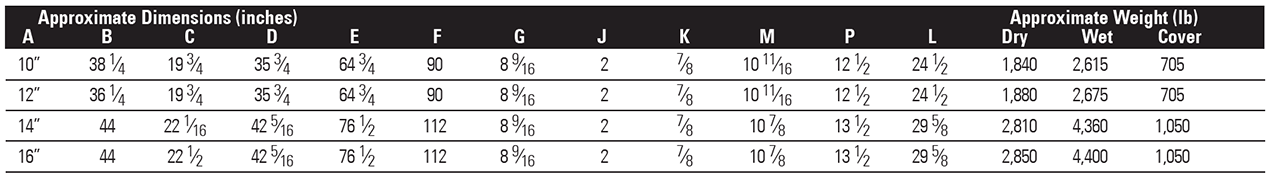

Click for Larger View
Flow Rates - Click for Larger View
- Model 2596 10-16 Inch Automatic Self-Cleaning Basket Strainer Data Sheet
- Model 2596 Control Systems
- Model 2596 Automatic Self-Cleaning Basket Strainer Technical Data
- Eaton Automatic Self-Cleaning Pipeline Strainers Catalog
- Eaton Model 2596 Automatic Self-Cleaning Strainers - How It Works
- Model 2596 Control Systems Installation, Operation & Maintenance Manual
- Eaton Manual-Automatic Pipeline Strainers Catalog
- Eaton Basket and Screen Data
- Pressure Drop Calculations
