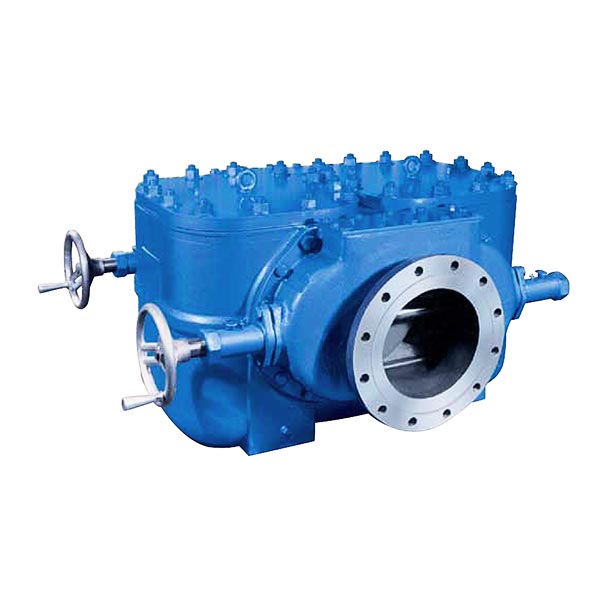

Click for Larger ViewEaton Model 570 Duplex Basket Strainer
Iron or Bronze, Flanged, 8" to 24"The Eaton Model 570 duplex basket strainer, specifically designed to remove potential damage causing particles from large volumes of water and other process media, strains up to 30,000 gpm (6,840 m³/h) efficiently and cost effectively. The strainer operates continuously and the pipeline flow never has to shut down for strainer basket cleaning.
-
Features:
- Continuous flow - no shutdown for basket cleaning
- Sliding gate design
- Eight baskets per strainer (four per side)
- Bolted cover
- Compact
- Perforated or mesh stainless steel baskets standard

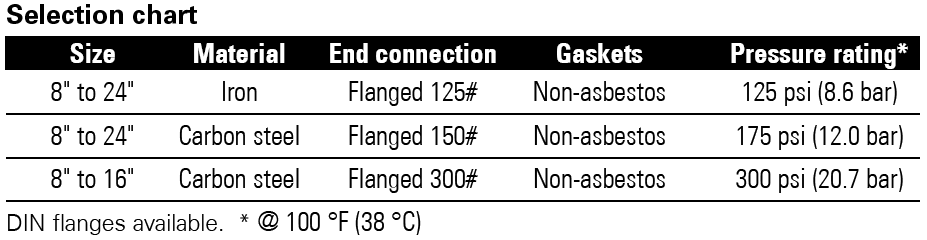

Available Sizes: 8", 10", 12", 14", 16", 20", 24"
The Model 570 is a multi-basket strainer, providing four baskets in each of the two straining chambers for a total of eight per duplex strainer. This makes the Model 570 a very compact unit for its size with a low profile, ideal for tight installations where space is a problem. And even if space is not a problem, why use a strainer that takes up more valuable floor space than is necessary?
Because of the multi-basket design, the individual baskets are smaller and lighter than would be possible with just a single basket. And just one person can remove and clean the baskets easily and rapidly. Lifting tackle is not needed to remove the baskets from the strainer housing.
The baskets feature a unique, angled top to permit direct fluid entry that contributes to the strainers low pressure drop. Because of the large open area ratio in the baskets, they have an unusually high dirt folding capacity which results in a longer cycle between basket cleaning. Over time the savings in labor and downtime for basket cleaning will be considerable.

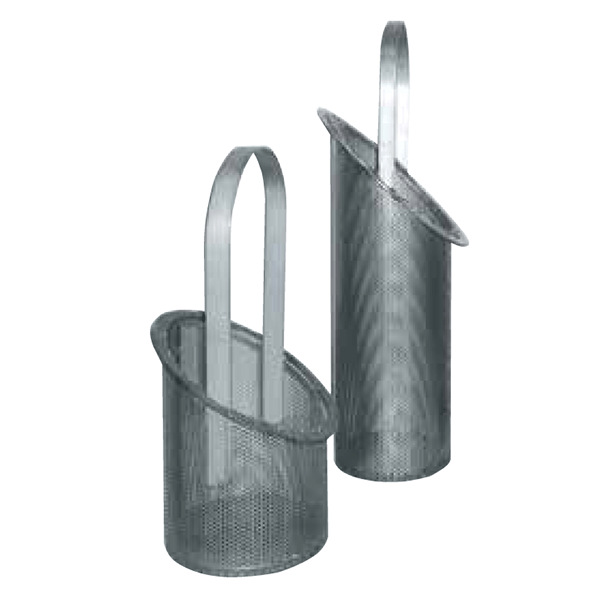

Unique Basket Design
The baskets feature an angled top to permit direct fluid entry that contributes to the strainer's low-pressure drop. Because of the large open area ratio in the baskets, they have an unusually high dirt holding capacity, which results in a longer cycle between basket cleaning. Over time, the savings in labor and downtime for basket cleaning will be considerable.
Because of the multi-basket design, the individual baskets are smaller and lighter than would be possible with just a single basket. And just one person can remove and clean the baskets easily and rapidly. Lifting tackle is not needed to remove the baskets from the strainer housing.
The baskets feature a unique, angled top to permit direct fluid entry that contributes to the strainers low pressure drop. Because of the large open area ratio in the baskets, they have an unusually high dirt folding capacity which results in a longer cycle between basket cleaning. Over time the savings in labor and downtime for basket cleaning will be considerable.
Unique Basket Design
The baskets feature an angled top to permit direct fluid entry that contributes to the strainer's low-pressure drop. Because of the large open area ratio in the baskets, they have an unusually high dirt holding capacity, which results in a longer cycle between basket cleaning. Over time, the savings in labor and downtime for basket cleaning will be considerable.

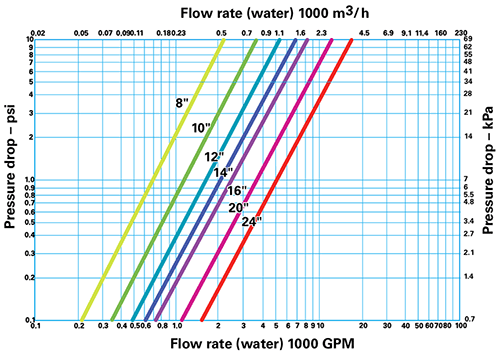

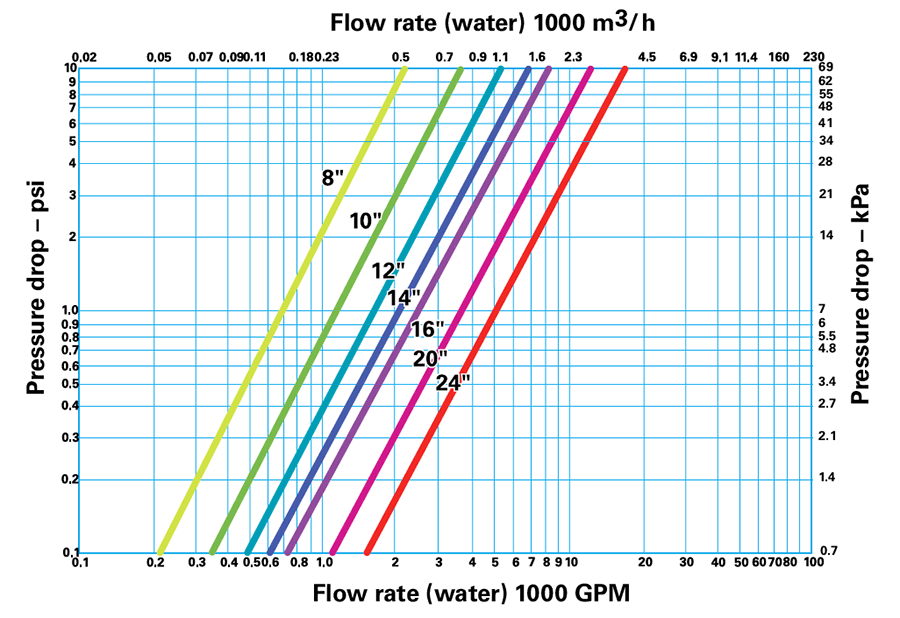

Flow Rates - Click for Larger View
Unique Basket Design - Click for Larger View
Options and Temporary Strainers
• Stainless steel construction
• Basket perforations from 1/32" to 1/2"
• Basket mesh 20, 40 or 60
• MONEL® baskets
• Vent valves
• Drain valves
• Cover lift davit
• Pressure differential gauge and switch connections
• Basket flange gaskets
• Magnetic basket inserts
MONEL® is a registered trademark of Special Metals Corporation group of Companies.

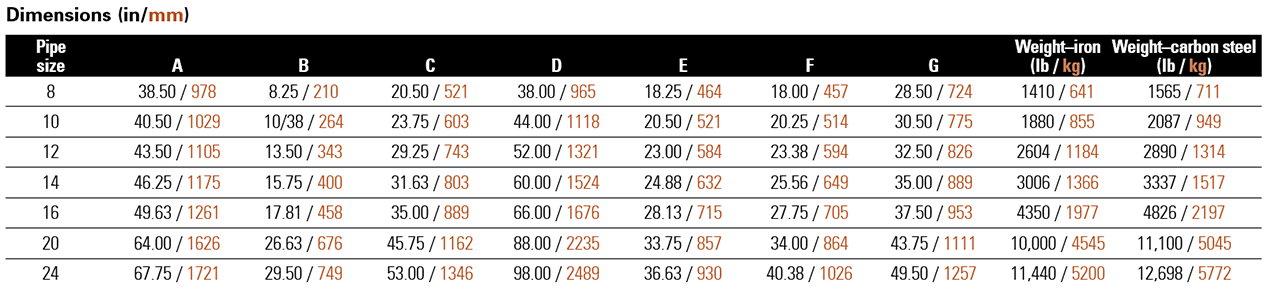

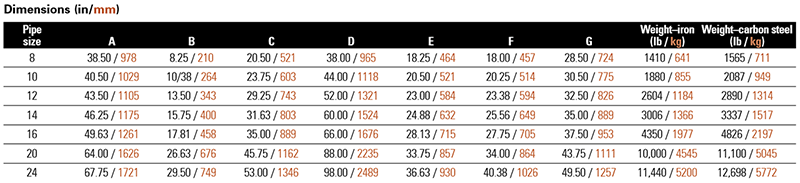

Click for Larger View

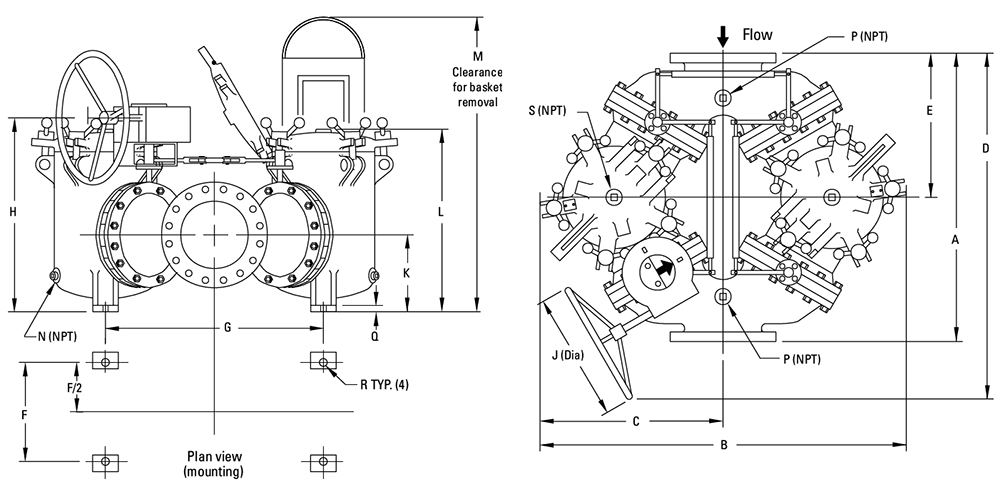

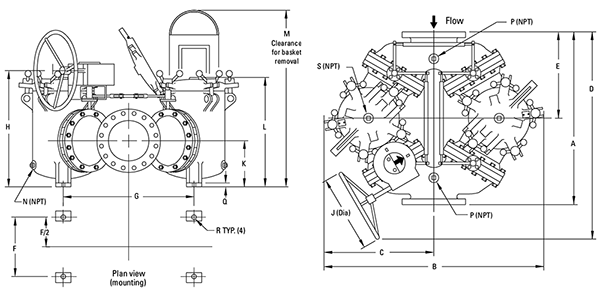

Click for Larger View
