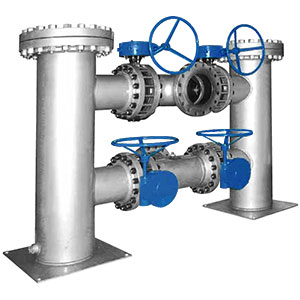

Eaton Model 950B Fabricated 14-24 Inch Offset Duplex Strainer

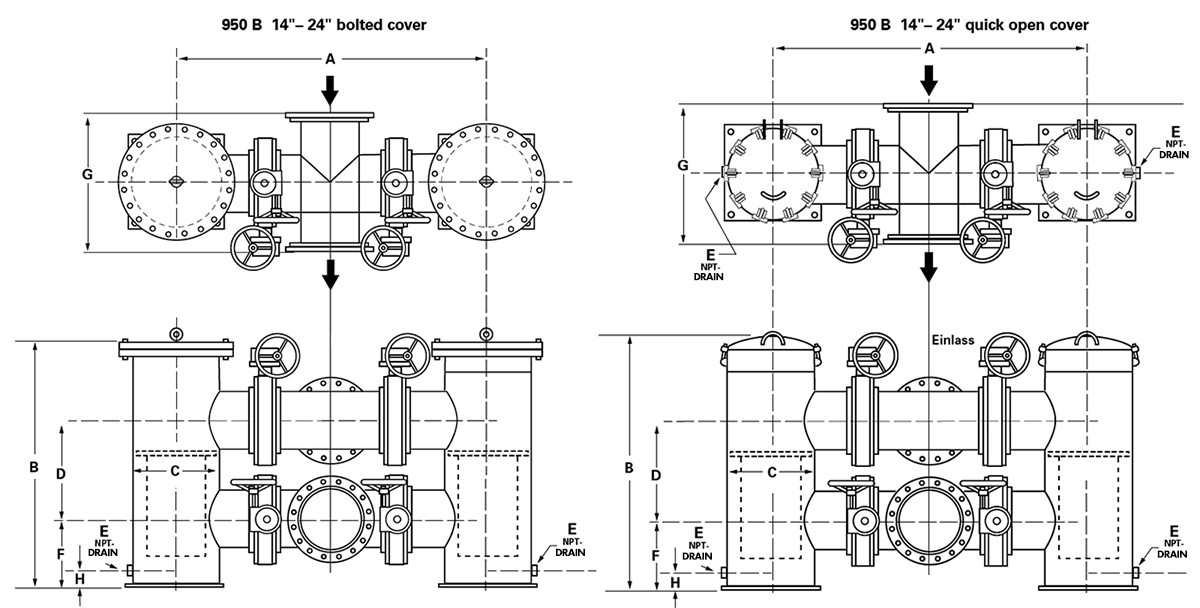

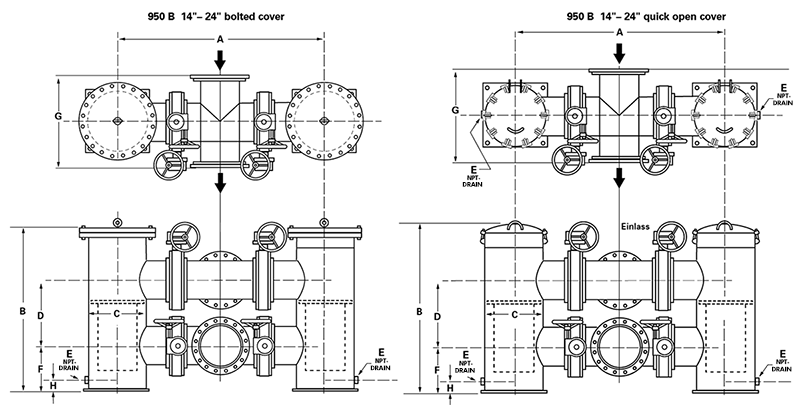

Bolted Cover or Quick Opening Cover, Carbon Steel or Stainless Steel, Flanged ANSI Class 150 or 300, 14" to 24"

The Eaton Model 950B fabricated duplex strainers operate continuously and feature two strainer basket housings connected by four individually operated valves. When the basket in the first housing becomes full, switching the flow to the second is easy using the butterfly valve assembly. Remove, clean, or replace the first basket for use again; the pipeline never shuts down.

  • Offset inlet/outlet design
  • Basket perforations from 1/32" to 1"
  • 20 to 400 mesh linings for fine straining applications
Available Sizes: 14", 16", 18", 20", 24"

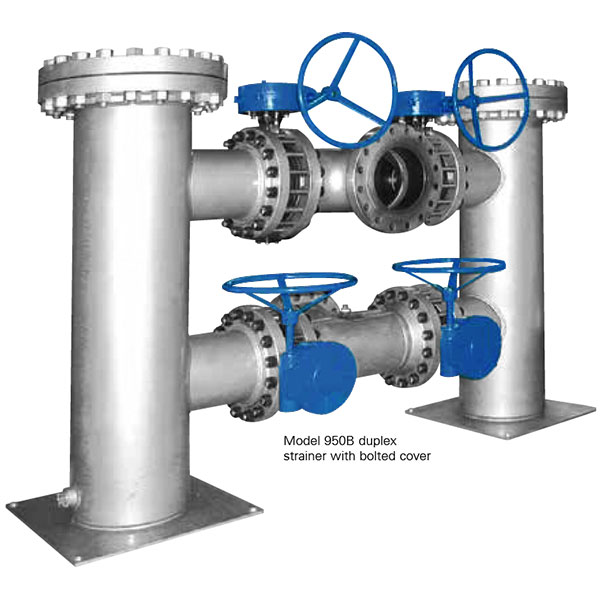

For applications with infrequent basket changing, Eaton offers a simple, cost-effective, bolted cover type. It’s available with a davit assembly cover for larger strainers with heavy covers, this makes it possible for a one-person operation.

For applications with more frequent changing, Eaton offers a hinged, quick opening cover secured by swing bolts. This is adaptable for higher pressure applications.

For medium size strainers, 14" to 16", a davit assembly bolted cover is available. This permits one operator to engage the hinge and open the cover.

Strainer screens are stainless steel or other specified materials.

Optional Steam Jacketing

Available in carbon steel or stainless steel rated for service up to 450 °F (232 °C). This is ideal for the high temperatures required to process and transport heavy, viscous fluids without affecting the function or normal maintenance of the strainer. Steam jacketing maintains critical fluid temperature throughout the strainer.

    Options:
  • Steam jacket for highly viscous fluids
  • Coatings and linings available upon request
  • Design and fabrication to DIN EN 13445, ASME Code, or ANSI B31.1 are available
